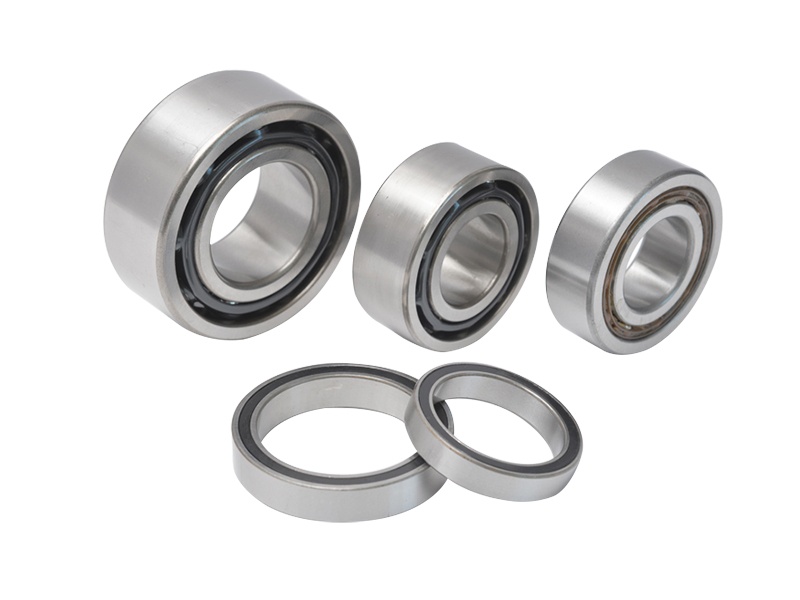

雙列角接觸球軸承 52系列
產(chǎn)品系列：雙列角接觸球軸承-52系列
| 型號 | 主要尺寸(mm) | 額定負(fù)載(kN) | 極限轉(zhuǎn)速(rpm) | 重量(Kg) |
| d | D | B | rs min | Cr | Cor | 脂潤滑 | 油潤滑 | (參考) |
| 5200 | ?10 | 30 | 14.3 | 0.6 | 6.95 | 3.8 | 14000 | 19000 | 0.049 |
| 5201 | 12 | 32 | 15.9 | 0.6 | 9.15 | 5.05 | 13000 | 17000 | 0.057 |
| 5202 | 15 | 35 | 15.9 | 0.6 | 10 | 6.05 | 11000 | 15000 | 0.064 |
| 5203 | 17 | 40 | 17.5 | 0.6 | 12.8 | 7.9 | 9900 | 13000 | 0.096 |
| 5204 | 20 | 47 | 20.6 | 1 | 19 | 12.1 | 8800 | 12000 | 0.153 |
| 5205 | 25 | 52 | 20.6 | 1 | 20.6 | 14.3 | 7300 | 9800 | 0.175 |
| 5206 | 30 | 62 | 23.8 | 1 | 28.6 | 20.4 | 6300 | 8400 | 0.286 |
| 5207 | 35 | 72 | 27 | 1.1 | 38 | 27.8 | 5500 | 7400 | 0.436 |
| 5209 | 45 | 85 | 30.2 | 1.1 | 48 | 37 | 4400 | 5900 | 0.64 |
| 5210 | 50 | 90 | 30.2 | 1.1 | 51 | 42 | 4000 | 5300 | 0.689 |
| 5211 | 55 | 100 | 33.3 | 1.5 | 63 | 53 | 3600 | 4900 | 0.986 |
| 5212 | 60 | 110 | 36.5 | 1.5 | 71.5 | 58.5 | 3400 | 4500 | 1.27 |
| 5213 | 65 | 120 | 38.1 | 1.5 | 83.5 | 72.5 | 3100 | 4200 | 1.57 |
| 5214 | 70 | 125 | 39.7 | 1.5 | 90.5 | 79.5 | 2900 | 3900 | 1.8 |
| 5215 | 75 | 130 | 41.3 | 1.5 | 90 | 80.5 | 2700 | 3600 | 1.9 |
| 5216 | 80 | 140 | 44.4 | 2 | 106 | 95.5 | 2500 | 3400 | 2.39 |
| 5217 | 85 | 150 | 49.2 | 2 | 112 | 106 | 2400 | 3200 | 3.06 |
| 5218 | 90 | 160 | 52.4 | 2 | 140 | 129 | 2200 | 3000 | 3.73 |
| 5219 | 95 | 170 | 55.6 | 2.1 | 159 | 148 | 2100 | 2800 | 4.86 |
| 5220 | 100 | 180 | 60.3 | 2.1 | 178 | 167 | 2000 | 2700 | 5.94 |
| 5302 | 15 | 42 | 19 | 1 | 17.2 | 10.1 | 9900 | 13000 | 0.132 |
| 5208 | 40 | 80 | 30.2 | 1.1 | 42.5 | 32.5 | 4900 | 6600 | 0.59 |
| 5303 | 17 | 47 | 22.2 | 1 | 20.4 | 12.1 | 9000 | 12000 | 0.181 |
| 5304 | 20 | 52 | 22.2 | 1.1 | 20.6 | 12.7 | 8000 | 11000 | 0.217 |
| 5305 | 25 | 62 | 25.4 | 1.1 | 30.5 | 20.5 | 6700 | 8900 | 0.362 |
| 5306 | 30 | 72 | 30.2 | 1.1 | 39.5 | 27.5 | 5700 | 7600 | 0.553 |
| 5307 | 35 | 80 | 34.9 | 1.5 | 49.5 | 35 | 5000 | 6600 | 0.766 |
| 5309 | 45 | 100 | 39.7 | 1.5 | 72.5 | 54 | 4000 | 5300 | 1.34 |
| 5310 | 50 | 110 | 44.4 | 2 | 85.5 | 64.5 | 3600 | 4800 | 1.81 |
| 5311 | 55 | 120 | 49.2 | 2 | 106 | 82 | 3300 | 4400 | 2.32 |
| 5312 | 60 | 130 | 54 | 2.1 | 122 | 95.5 | 3000 | 4000 | 3.05 |
| 5313 | 65 | 140 | 58.7 | 2.1 | 138 | 109 | 2800 | 3700 | 3.96 |
| 5314 | 70 | 150 | 63.5 | 2.1 | 155 | 125 | 2600 | 3500 | 4.74 |
| 5315 | 75 | 160 | 68.3 | 2.1 | 168 | 141 | 2400 | 3200 | 5.65 |
| 5308 | 40 | 90 | 36.5 | 1.5 | 60.5 | 44 | 4400 | 5900 | 1.01 |
| 5308-2RS | 40 | 90 | 36.5 | 1.5 | 55 | 40 | 4400 | - | 1.01 |
| 5307-2RS | 35 | 80 | 34.9 | 1.5 | 49.5 | 35 | 5000 | - | 0.766 |
| 5306-2RS | 30 | 72 | 30.2 | 1.1 | 33 | 24.3 | 5700 | - | 0.553 |
| 5305-2RS | 25 | 62 | 25.4 | 1.1 | 26.5 | 17.9 | 6700 | - | 0.362 |
| 5304-2RS | 20 | 52 | 22.2 | 1.1 | 19.1 | 12.4 | 8000 | - | 0.217 |
| 5303-2RS | 17 | 47 | 22.2 | 1 | 17.4 | 10.4 | 9000 | - | 0.181 |
| 5208-2RS | 40 | 80 | 30.2 | 1.1 | 40.5 | 32 | 4900 | - | 0.59 |
| 5302-2RS | 15 | 42 | 19 | 1 | 14.2 | 8.85 | 9900 | - | 0.132 |
| 5207-2RS | 35 | 72 | 27 | 1.1 | 33 | 24.5 | 5500 | - | 0.436 |
| 5206-2RS | 30 | 62 | 23.8 | 1 | 26.1 | 19.7 | 6300 | - | 0.286 |
| 5205-2RS | 25 | 52 | 20.6 | 1 | 18.2 | 13.2 | 7300 | - | 0.175 |
| 5204-2RS | 20 | 47 | 20.6 | 1 | 15.8 | 10.1 | 8800 | - | 0.153 |
| 5203-2RS | 17 | 40 | 17.5 | 0.6 | 10.8 | 7.1 | 9900 | - | 0.096 |
| 5202-2RS | 15 | 35 | 15.9 | 0.6 | 8.2 | 5.25 | 11000 | - | 0.064 |
| 5201-2RS | 12 | 32 | 15.9 | 0.6 | 7.6 | 4.5 | 13000 | - | 0.057 |
| 5200-2RS | 10 | 30 | 14.3 | 0.6 | 6.95 | 3.8 | 14000 | - | 0.049 |
| 5200-ZZ | 10 | 30 | 14.3 | 0.6 | 6.95 | 3.8 | 14000 | - | 0.049 |
| 5201-ZZ | 12 | 32 | 15.9 | 0.6 | 7.6 | 4.5 | 13000 | - | 0.057 |
| 5202-ZZ | 15 | 35 | 15.9 | 0.6 | 8.2 | 5.25 | 11000 | - | 0.064 |
| 5203-ZZ | 17 | 40 | 17.5 | 0.6 | 10.8 | 7.1 | 9900 | - | 0.096 |
| 5204-ZZ | 20 | 47 | 20.6 | 1 | 15.8 | 10.1 | 8800 | - | 0.153 |
| 5205-ZZ | 25 | 52 | 20.6 | 1 | 18.2 | 13.2 | 7300 | - | 0.175 |
| 5206-ZZ | 30 | 62 | 23.8 | 1 | 26.1 | 19.7 | 6300 | - | 0.286 |
| 5207-ZZ | 35 | 72 | 27 | 1.1 | 33 | 24.5 | 5500 | - | 0.436 |
| 5302-ZZ | 15 | 42 | 19 | 1 | 14.2 | 8.85 | 9900 | - | 0.132 |
| 5208-ZZ | 40 | 80 | 30.2 | 1.1 | 40.5 | 32 | 4900 | - | 0.59 |
| 5303-ZZ | 17 | 47 | 22.2 | 1 | 17.4 | 10.4 | 9000 | - | 0.181 |
| 5304-ZZ | 20 | 52 | 22.2 | 1.1 | 19.1 | 12.4 | 8000 | - | 0.217 |
| 5305-ZZ | 25 | 62 | 25.4 | 1.1 | 26.5 | 17.9 | 6700 | - | 0.362 |
| 5306-ZZ | 30 | 72 | 30.2 | 1.1 | 33 | 24.3 | 5700 | - | 0.553 |
| 5307-ZZ | 35 | 80 | 34.9 | 1.5 | 49.5 | 35 | 5000 | - | 0.766 |
| 5308-ZZ | 40 | 90 | 36.5 | 1.5 | 55 | 40 | 4400 | - | 1.01 |
